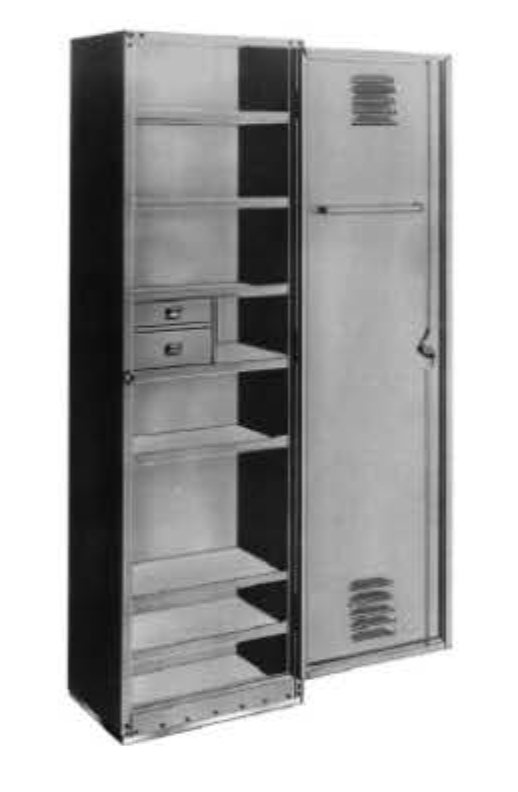

B-2B-6 | Locker, Clothes, Type A
Intended Use: In CPO Berthing Spaces for Individual Use
SFC No. B-2B-6
Hull Type Drawing No. No. 805-1626365
NSN: H2090-00-543-3596
Principal Material: Aluminum
Remarks:
- Removable bottom to permit deck inspection.
- Door can be padlocked, but padlock is not provided.
Additional Information
Size Millimeters (Inches)
| Width | Depth | Height | Weight kg (lb) |
| 560 (22) | 380 (15) | 1910 (75) | 21.3 (47) |
| Standard Bed | Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258) |
|---|---|
| Long Bed Complete as Shown | Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268) |
