B-1B-1 | Berth, Modular, Lightweight

See Sizes

Intended Use: ln Enlisted Berthing Spaces

Download PDF



SFC No. B-1B-1 1 of 5

Hull Type Drawing No. 804-5959312

NSN:

Size -Millimeters (Inches)

Principal Material: Aluminum

Remarks: BERTH, MODULAR,. LIGHTWEIGHT

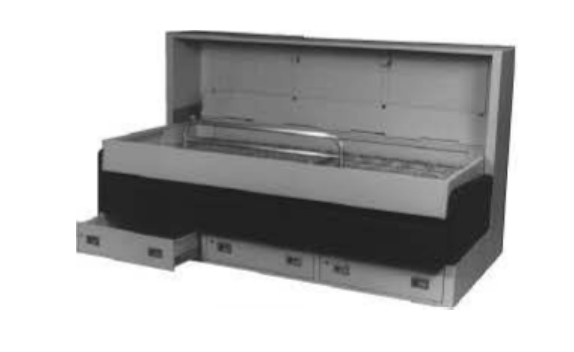

The illustration shown is a typical crew modular berth. The CPO modular berth is similar. Various styles, representing different configurations are depicted and described on the following data sheets. These berths replace CPO and crew berths, drawings, NAVSEA No. 804-5184205, 804-1409485, and 804-2229637.

Original price was: $1,000.00.Current price is: $400.00.

Sale!
B-1B-1 | Berth, Modular, Lightweight

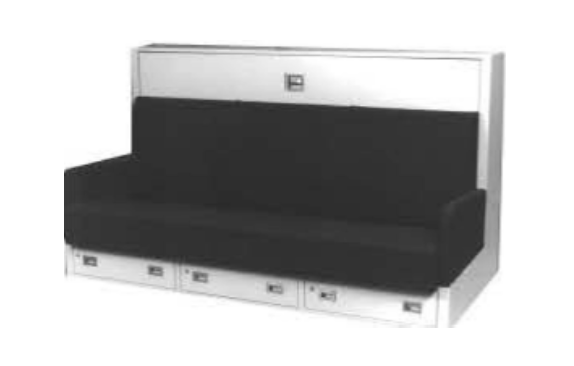

B-1B-1 | Berth, Modular, Lightweight - Image 2

Additional Information

Order Options

  • The following berth components may be ordered separately:
  • Lee Strap Assembly, NSN 1H 2090-01-283-3362
  • Light Fixture. NSN 1H 2090-01-279-9740
  • Kick Out Panel and Frame, NSN 1H 2090-01284-4307
Standard Bed

Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258)
Long Bed Complete as Shown

Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268)
