B-2A-16 | Drawer Units S6, S7, S8, and S9 Submarine

See Sizes

Intended Use: In Staterooms on Submarines

Download PDF

SFC No. B-2A-16
Hull Type Drawing No. No. 805-1641662
NSN: NONE

Principal Material: Aluminum
Remarks:

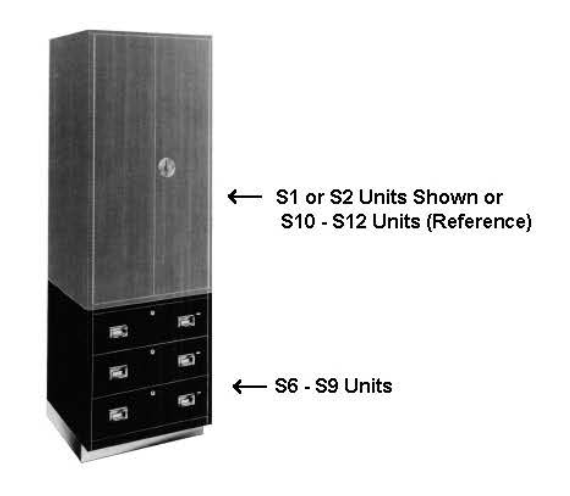

  • Generally used in conjunction with Utility Locker. Unit S-10, S-11, or S-12 short Wardrobe, Unit S-1 or S-2, as shown on Hull Type Drawing 805-1648290.
  • Knockdown construction for shipping through a 25-inch diameter hatch. If used independently, each unit must have a false top.
  • Sub-bases are provided for Unit S-6 and S-7. (See Hull Type Drawing No. S3306-921770).
  • Finish-baked enamel.

*Sub-base is not included in these figures.

Original price was: $1,000.00.Current price is: $400.00.

Sale!
B-2A-16 | Drawer Units S6, S7, S8, and S9 Submarine

Additional Information

Size Millimeters (Inches)

Item Width Depth Height Weight kg (lb)
Unit S6-3 drawer 610 (24) 560 (22) 610 (24) 31.3 (69)
(shown) 460 (18) 560 (22) 610 (24) 27.2 (60)
Unit S7-3 drawer 610 (24) 560 (22) 430 (17-⅛) 18.6 (41)
Unit S8-2 drawer 460 (18) 560 (22) 430 (17-⅛) 15.0 (33)
Standard Bed

Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258)
Long Bed Complete as Shown

Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268)
