B-2A-17 | Locker Units S10, S11, and S12 Utility, Submarine

See Sizes

Intended Use: In staterooms on Submarine

Download PDF

SFC No. B-2A-17
Hull Type Drawing No. No. 805-1648289
NSN: NONE

Principal Material: Aluminum

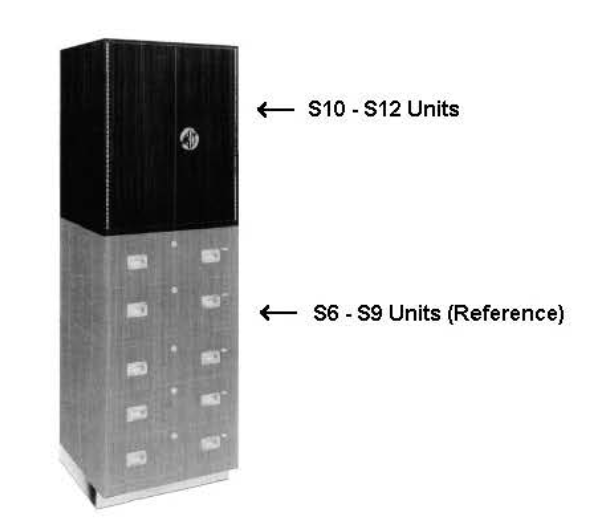

Remarks: Generally used with Drawer Unit, S-6, S-7, S-8, or S-9, or Secretary Unit, Unit S-5, as shown on Hull Type drawing 805-1648290.

  • 2 adjustable shelves.
  • Book compressor on locker bottom.
  • Knockdown construction to permit access through a 25-inch diameter hatch.
  • Finish-baked enamel.

Original price was: $1,000.00.Current price is: $400.00.

Sale!
B-2A-17 | Locker Units S10, S11, and S12 Utility, Submarine

Additional Information

Size Millimeters (Inches)

Item Width Depth Height Weight kg (lb)
Unit S10 690 (27) 440 (17-¼) 780 (30-⅞) 15.9 (35)
Unit S11 (shown) 610 (24) 560 (22) 780 (30-⅞) 18.1 (40)
Unit S12 (single door) 460 (18) 560 (22) 780 (30-⅞) 14.1 (31)
Standard Bed

Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258)
Long Bed Complete as Shown

Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268)
