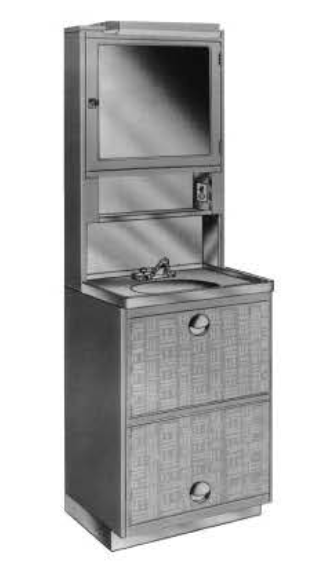

B-2A-2 | Lavatory Unit

See Sizes

Intended Use: In Officer Staterooms

Download PDF

SFC: B-2A-2
Hull Type Drawing No. No. 804-1623970
NSN: 4510-01-142-1655

Principal Material: Nickel copper, aluminum, stainless steel sink bowl and top
Remarks:

  • Upper cabinet is fitted with three adjustable shelves and two toothbrush racks.
  • Two door cabinet below the washbasin designed for soiled clothing also provides access to plumbing.
  • Lower doors are slot perforated for ventilation of the cabinet.
  • Unit includes fluorescent light, electric outlet, sink plumbing fixtures, and sub-base.

Original price was: $1,000.00.Current price is: $400.00.

Sale!
B-2A-2 | Lavatory Unit

Additional Information

Size Millimeters (Inches)

Item Width Depth Height Weight
Lavatory Unit, complete with sub-base, light, sink, and plumbing fixtures. 610 (24) 480 (19) 1910 (75) 43.1 (95)



Standard Bed

Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258)
Long Bed Complete as Shown

Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268)
