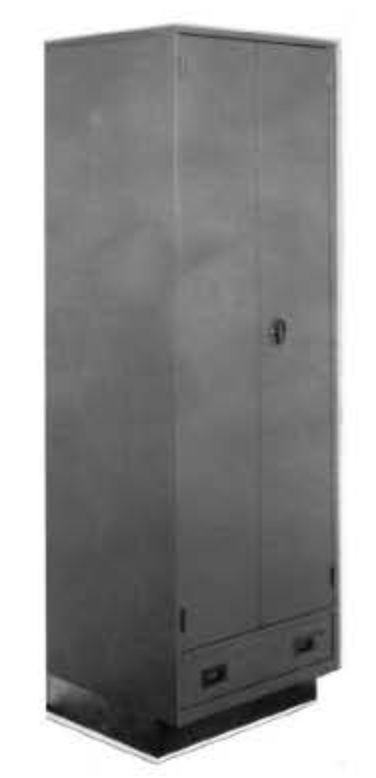

B-2A-5 | Wardrobe, Long 24″ Modular Furniture Unit No. 5
Intended Use: In Staterooms
SFC No. B-2A-5
Hull Type Drawing No. No. 805-1622993
NSN: H2090-00-802-8314
Principal Material: Aluminum
Remarks:
- Wardrobe has a clothes compressor.
- Unit is furnished with a sub-base.
*Sub-base is not included in these figures (See Hull Type Drawing S3306-921770).
Additional Information
Size Millimeters (Inches)
| Width | Depth | Height | Weight (kg) (lb) |
| 610 (24) | 560 (22-⅛) | 1830 (72) | 35.4 (78) |
| Standard Bed | Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258) |
|---|---|
| Long Bed Complete as Shown | Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268) |
