B-2B-5 | Lockers, Soiled Clothes

See Sizes

Intended Use: In CPO, Crew, and Marine Berthing

Download PDF

SFC No. B-2B-5
Hull Type Drawing No. No. 805-1648667
NSN: NONE

Principal Material: Aluminum
Remarks:

  • All doors louvered.
  • Types I & II have single upper and lower doors.
  • Types III, IV & V have double doors.
  • Upper doors fitted with spring hinges.
  • Provide a minimum of .75 cubic feet per man and at least two compartments per berthing space, one for whites, one for blues.
  • One half of each locker shall be labeled for soiled whites and the other for soiled blues.
  • Where a type  III, IV & V is required, two of type I or II , as appropriate, may be used.
  • Where two lockers are provided in one space, the partition plate may be omitted and one locker labeled for soiled whites and the other for soiled blues.
  • All lockers to be mounted on legs furnished with the locker.
  • Locker is assembled with screws and nuts.

Original price was: $1,000.00.Current price is: $400.00.

Sale!
B-2B-5 | Lockers, Soiled Clothes

Additional Information

Size Millimeters (Inches)

Item Width Depth Height Weight kg (lb)
Type I 610 (24) 610 (24) 1830 (72) 35.8 (79)
Type II 910 (36) 610 (24) 1830 (72) 41.3 (91)

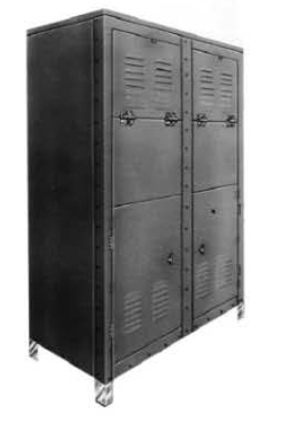

Type III (shown) 1220 (48) 610 (24) 1830 (72) 46.3 (102)
Type IV 1520 (60) 610 (24) 1830 (72) 51.3 (113)
Type V 1830 (72) 610 (24) 1830 (72) 56.7 (125)



Order Options

  • Specify assembled or KD
Standard Bed

Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258)
Long Bed Complete as Shown

Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268)
