B-2B-8 | Lockers, Clothes, Type B-1, Crew
Intended Use: In Crew Berthing spaces when Underberth Stowage is not Available
SFC No. B-2B-8
Hull Type Drawing No. 805-1626432
NSN:
Principal Material: Aluminum
Remarks:
- All lockers are compartmented as per the lower unit.
- Lockers can be ordered with either a right or left hand door swing.
- Door can be padlocked, but the paklock is not provided.
- Three-high unit.
Original price was: $1,000.00.$400.00Current price is: $400.00.
Sale!
Additional Information
Size Millimeters (Inches)
| NSN | Width | Depth | Height | Weight kg (lb) | |

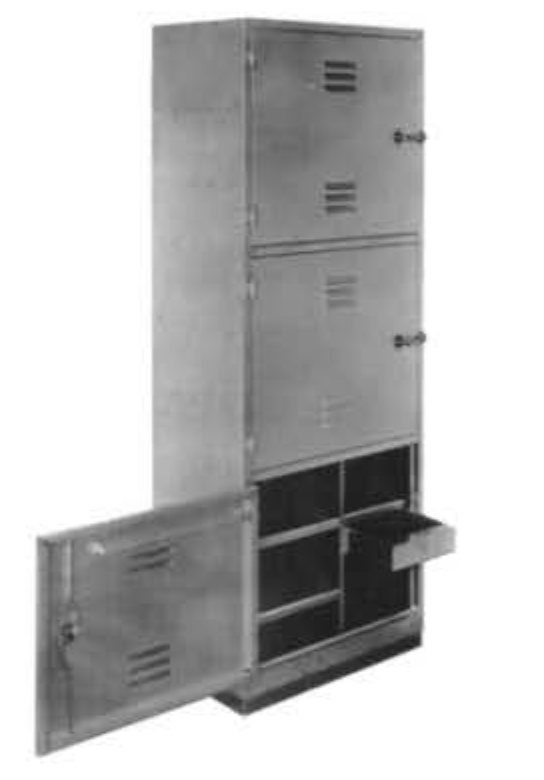

| Left Hand Door (Shown) | H2090-00-543-3595 | 660 (26) | 510 (20) | 1910 (75) | 39.9 (88) |
| Right Hand Door | H2090-00-543-3594 | 660 (26) | 510 (20) | 1910 (75) | 39.9 (88) |
| Standard Bed | Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258) |
|---|---|
| Long Bed Complete as Shown | Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268) |
