B-3A-1 | Sofas and Chair, Lounge
Intended Use: In Lounges and Cabin
SFC No. B-3A-1
Hull Type Drawing No. NONE
NSN: NONE
Principal Material: Aluminum frame, upholstery, and cushioning
Remarks:
- Available with or without button back cushions however, button backs recommended for cabins only.
- Sinuous springs in the seat and back.
- Reversible seat cushions.
- Legs or closed base available.
- Seat cushion 4-½” thick.
Original price was: $1,000.00.$400.00Current price is: $400.00.
Sale!
Additional Information
Size Millimeters (Inches)
| Item | SFC No. | Width | Depth | Height | Weight |

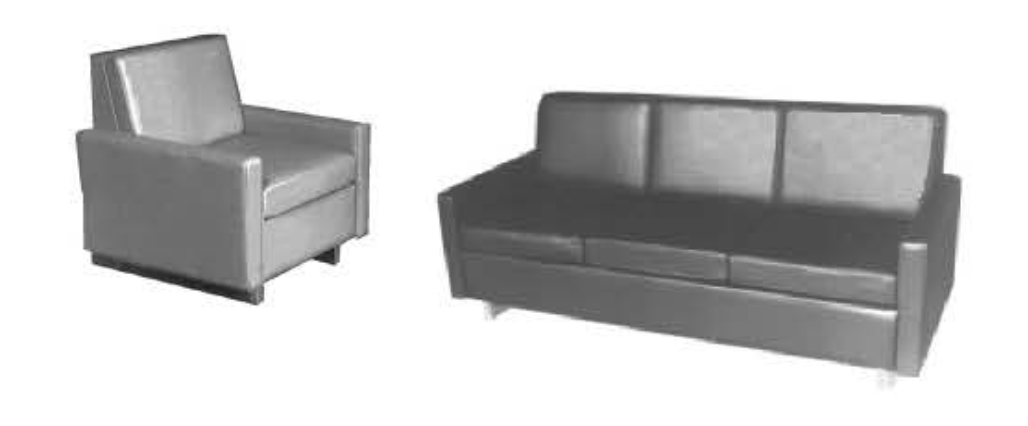

| Soft, 3 seat (shown) | B-3A-1a | 1960 (77) | 760 (30) | 760 (30) | 81.6 (80) |
| Soft, 2 seat ( not shown) | B-3A-1b | 1370 (54) | 760 (30) | 760 (30) | 68.0 (150) |
| Chair, Lounge (shown) | B-3A-1c | 790 (31) | 760 (30) | 760 (30) | 45.4 (100) |
ORDER OPTIONS:
- Back – with or without buttons.
- Upholstery – vinyl or woven fabric.
- Upholstery – color and pattern.
- Base – legs or closed base.
- Base – brushed aluminum or paint color.
| Standard Bed | Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258) |
|---|---|
| Long Bed Complete as Shown | Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268) |
