B-4A-1 | Sideboards and Serving Tables, Modular (4 & 6 Seat)

See Sizes

Intended Use: In Officer Wardroom

Download PDF

SFC No. B-4A-1
Hull Type Drawing No. No. 805-1625029
NSN: See Below

Principal Material: Aluminum and high pressure laminate.
Remarks:

  • Units may be arranged in single or multiple units to suit shipboard arrangement to make up a sideboard of serving table.
  • 4″ splash integral with top.

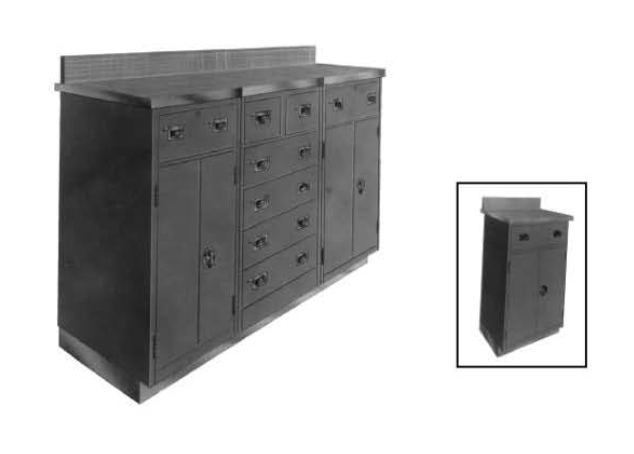

  • Unit No. 1 (small photograph) fitted with one adjustable shelf.
  • Drawer has one tray and one condiment retainer.
  • Unit No. 2, shown in the center of multiple assembly, has a tray in each of the small drawers.
  • See Hull Type Drawing for alternate arrangements.

Original price was: $1,000.00.Current price is: $400.00.

Sale!
B-4A-1 | Sideboards and Serving Tables, Modular (4 & 6 Seat)

Additional Information

Size Millimeters (Inches)

Basic Units NSN Length Width Height Weight kg (lb)
Unit No. I with top and base (shown) H2090-00-638-0049 610 (24) 480 (19) 970 (38) 37.6 (83)
Unit No. 2 with top and base. H2090-00-638-1168 610 (24) 480 (19) 970 (38) 54.4 (120)
Top for 1 Unit H2090-00-638-1169 660 (26) 480 (19) 5.9 (13)
Top for 2 Units H2090-00-638-1172 1279 (50) 480 (19) 10.4 (23)
Top for 3 Units H2090-00-638-1443



ORDER OPTIONS:

  • Specify high pressure laminate manufacturer, color and number.
Standard Bed

Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258)
Long Bed Complete as Shown

Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268)
