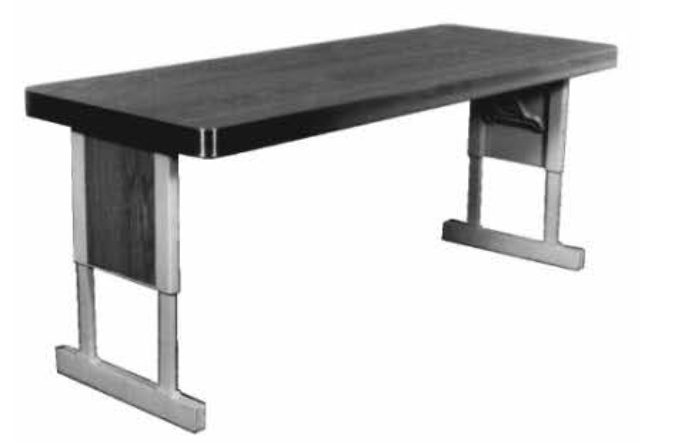

B-4B-1 | Tables, Mess, Portable, Lightweight, Crew

Intended Use: Mess Decks with Dual Usage (e.g., Weapons Assembly)

Download PDF

SFC No. B-4B-1
Hull Type Drawing No. No. 804-4661738 & 804-4661739
NSN: NONE

Principal Material:Aluminum, high pressure laminate
Remarks:

• The two sizes of tables are identical in design except for the folding mechanism of “gate” legs.
• Both tables have two folding gate legs but those of the 4-man table telescope so as to fit neatly beneath and within the periphery of the tabletop.
• A positive locking device is incorporated to maintain gate legs in open position. A securing lever is provided to lock gate legs in their closed position for stowage.
• Tables are stackable without damage to each other to whatever height is convenient for handling. When tables are stacked care should be taken that they are adequately secured.
• Tops – high pressure plastic laminate with stainless steel edge binding flush with table top.
• Gate legs contain a decorative accent panel which can be matched or coordinated with design and color of top.
• Glides – although not indicated on Hull type Drawing adjustable nylon glides should be ordered to compensate for deck irregularity.
• Tables shorter than 46″ length cannot be fabricated to match, due to the nature of design.
• For such sizes, pedestal tables are recommended. (See Hull Type Drawing 804-4623536).
• For information on stacking chairs see section 3c.
