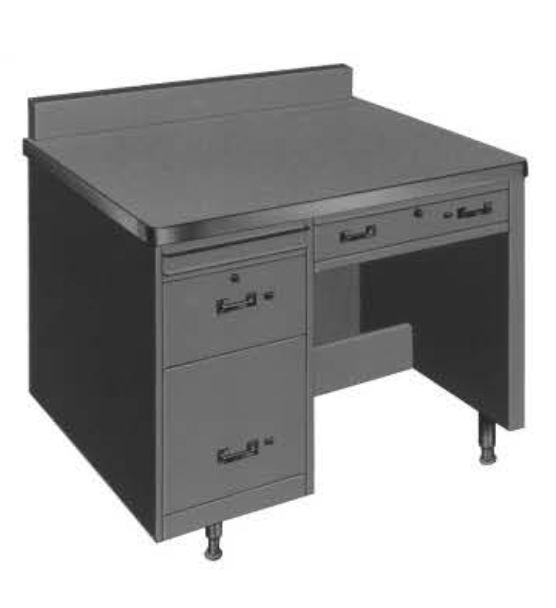

B-5A-2 | Desk, Flat Top, Single Pedestal (48, 40, 36, 30)
Intended Use: In Office Spaces
SFC No. B-5A-2
Hull Type Drawing No. No. 805-2224391
NSN: None
Principal Material: Aluminum and high pressure laminate
Remarks:
- File drawer has an extension carriage and compressor.
- Intermediate drawer has adjustable partitions.
- Small drawer has a pencil tray.
- Pull-out writing shelf.
- 4″ back splash.
- Legs adjustable for sheer and camber.
Original price was: $1,000.00.$400.00Current price is: $400.00.
Sale!
Additional Information
Size Millimeters (Inches)
| Item | Width | Depth | Height | Weight kg (lb) |
| Desk, Overall | 1010 (39-¾) | 760 (30) | 880 (34-½) | 49.9 (110) |
| Work surface above Deck | 770 (30) |
Order Options:
- Pedestal – order as shown L. H. or opposite band R. H.
- Top – specify high pressure laminate manufacturer, color, and number.
- Frame – brushed aluminum or paint (color).
| Standard Bed | Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258) |
|---|---|
| Long Bed Complete as Shown | Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268) |
