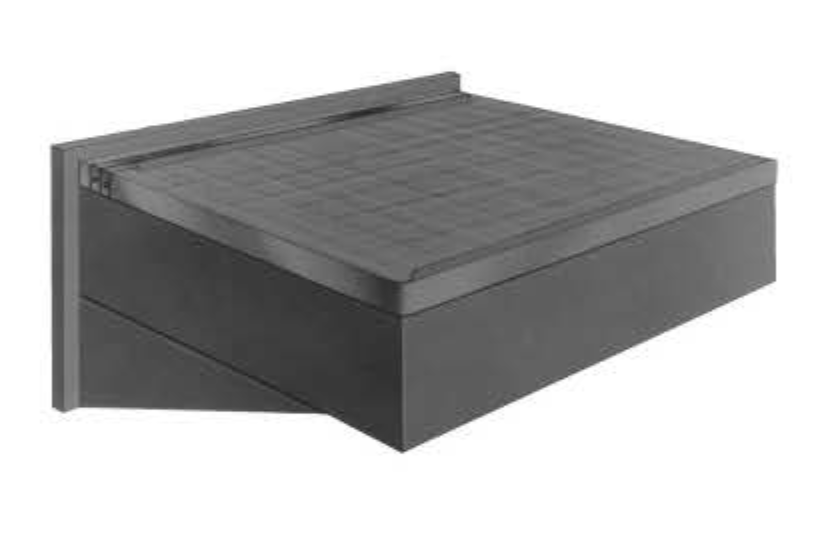

B-5B-2 | Desk, Log, with Hinged Top

See Sizes

Intended Use: Various Locations

Download PDF

SFC No. B-5B-2
Hull Type Drawing No. No. S3209-634554
NSN: None

Principal Material: Aluminum and high pressure laminate
Remarks:

  • Top hinges upward for access to the stowage compartment.
  • Bulkhead mounted.
  • Recommended Height above deck for stand up use.

Original price was: $1,000.00.Current price is: $400.00.

Sale!
B-5B-2 | Desk, Log, with Hinged Top

Additional Information

Size Millimeters (Inches)

Item Width Depth Height Weight kg (lb)
Desk, log 620 (24-½) 550 (21-¾) 460 (18) 7.3 (16)
Work surface above Deck 1070 (42)



Order Options:

  • Frame – brushed aluminum or paint (color).
  • Top – specify high pressure laminate, manufacturers, color, and number.
Standard Bed

Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258)
Long Bed Complete as Shown

Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268)
