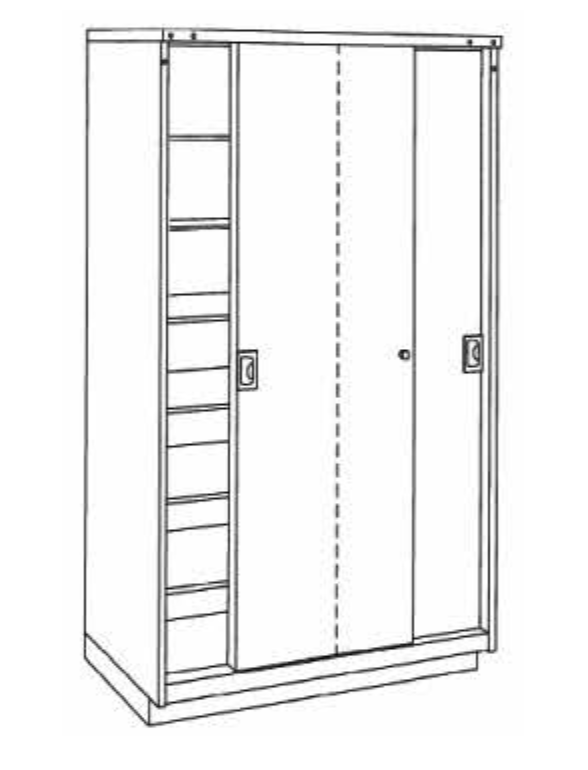

B-7A-4 | Cabinet, Oral Surgical
Intended Use: Dental Operating Rooms
SFC No. B-7A-4
Hull Type Drawing No. No. 805-1627827
NSN: None
Principal Material: Aluminum
Remarks:
- Storage capacity; 17 cubic feet.
- Unit has six adjustable shelves.
- Lock at center of cabinet secures both sliding doors.
- *Subbase included.
Additional Information
Size Millimeters (Inches)
| Width | Depth | Height | Weight kg (lb) |
| 890 (35) | 410 (16) | 1650 (65) | 43.1 (95) |
| Standard Bed | Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258) |
|---|---|
| Long Bed Complete as Shown | Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268) |
