Berth, Officer’s, Size 1 & 2, Single or Double
Intended Use: In Staterooms
Download PDF
SFC No. B-1A-2
Hull Type Drawing No. No. 805-1631103 (Size 1) 805-1634193 (Size 2) 805-1632586 (Spring Unit)
NSN:
Size -Millimeters (Inches)
Principal Material: Aluminum
Remarks:
- Size 2 berths (the larger size) should be specified, space permitting.
- Size 1 berths (the smaller) should only be selected for compartments that cannot accommodate size 2 berths.
- Three drawers, providing 10.76 cubic feet of storage space, and sub-bases are included.
- Removable panels under spring of bottom berths provide access to end drawers when the fronts are obstructed.
- Lee rails are removable.
- Berths are designed to accommodate the following mattress sizes in accordance with specification MIL-M-18351:
- Size 1 berth: Type III, Size 1
- Size 2 berth: Type III, Size 2
Original price was: $1,000.00.$400.00Current price is: $400.00.
Sale!
Additional Information
| Item | NSN | Length | Width | Height | Weight kg (lbs) |
| Sgl, Size 1 | H2090-00-826-1855 | 2070
(81-½) |
830 (32-½) | 650 (25-⅝) | 92.5 (204) |

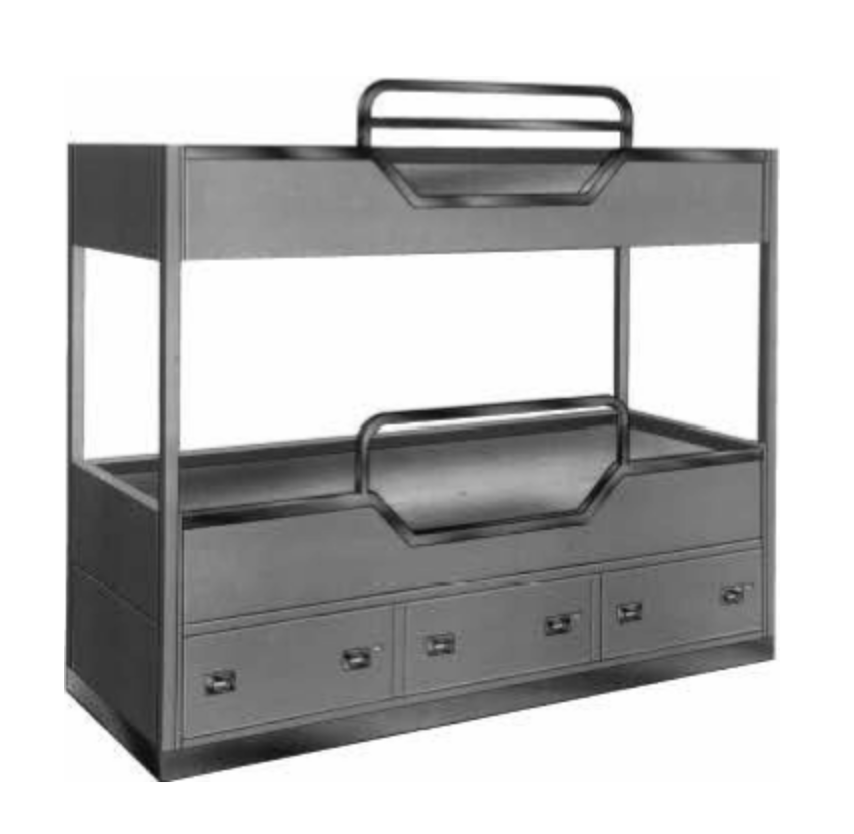

| Dbl, Size 1 (shown) | H2090-00-826-1897 | 2070 (81-½) | 830 (32-½) | 1570 (61-¾) | 135.6 (299) |
| Spring Unit, Size 1 | H2090-00-754-4428 | 1930 (76) | 710 (28) | 80 (3) | 19.1 (42) |
| Sgl, Size 2 | H2090-00-826-1856 | 2070 (81-½) | 1000 (39-¼) | 650 (25-⅝) | 98.4 (217) |
| Dbl, Size 2 | H2090-00-826-1857 | 2070 (81-½) | 1000 (39-¼) | 1570 (61-¾) | 144.2 (318) |
| Spring Unit, Size 2 | H2090-00-754-4429 | 1930 (76) | 880 (34-¾) | 80 (3) | 20.9 (46) |
ORDER OPTIONS:
- Berth – Single or Double.
- Mattress – See Section 1D, SheetB-1D-1.
- Springs – Size 1 or Size 2
- Specify ladder when ordering double berth. Ladder to be manufactured in accordance with MIL-PRF-3203B.
- Berth lights, if required should be specified, in accordance with MIL-F-16377/17.
| Standard Bed | Height – 2240 (88-¼), Width – 1250 (49-¼), Height – 610 (24), Weight kg (lb) – 117.0 (258) |
|---|---|
| Long Bed Complete as Shown | Height – 2390 (94-1/4), Width – 1250 (49-1/4), Height – 610(24), Weight kg (lb) – 121.6 (268) |
